In industrial manufacturing, maintaining precise and consistent temperatures is essential for achieving high-quality output. Whether it is metal forming, plastic molding, packaging, or die casting, the efficiency of the heating system directly impacts production performance. Among the various industrial heating solutions available today, cartridge heaters have emerged as one of the most reliable and effective options for die heating.
Their compact design, high watt density, and ability to provide uniform heat distribution make them a preferred choice across numerous industries. Understanding how heater cartridges work and why they are widely used for die heating can help businesses make informed decisions for their manufacturing processes. For applications requiring specific dimensions, wattage, voltage, or heating requirements, customized cartridge heaters can provide a more suitable solution. As a cartridge heater manufacturer, Heat Source offers customized heating solutions based on specific application and process requirements.

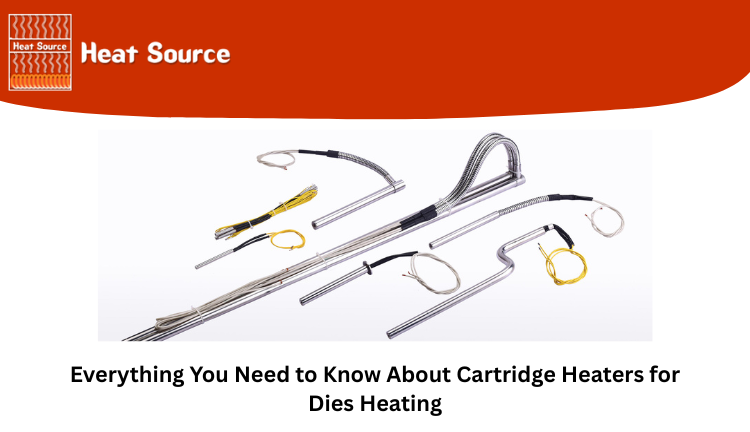

Cartridge heaters are cylindrical electrical heating elements designed to be inserted into drilled holes within metal blocks, dies, molds, or machinery components. They generate heat through resistance wire enclosed within a metallic sheath, allowing efficient heat transfer directly to the surrounding material.
Due to their ability to deliver concentrated heat in confined spaces, heater cartridges are commonly used in applications where precise temperature control is required.
A die is a critical component in many manufacturing processes, including stamping, molding, extrusion, and forming operations. To maintain production quality and prevent material defects, dies often require consistent and controlled heating.
Heater cartridges are ideal for die heating because they offer:
Cartridge heaters help maintain consistent temperatures throughout the die, reducing the risk of hot spots and improving product consistency.
Their high watt density enables rapid heating, helping manufacturers reduce production delays and improve operational efficiency.
The compact cylindrical construction allows heater cartridges to fit into limited spaces while delivering powerful heating performance.
When paired with thermocouples and temperature controllers, heater cartridges provide precise thermal management for critical industrial processes.
Consistent heating minimizes defects, reduces material wastage, and helps maintain uninterrupted production cycles.
Cartridge heaters contain a resistance heating wire surrounded by high-quality insulation material, typically magnesium oxide. When electrical current passes through the resistance wire, heat is generated and transferred through the heater sheath to the die or mold.
The close contact between the cartridge heater and the surrounding metal ensures efficient heat transfer, resulting in stable operating temperatures and improved process control.
Cartridge heaters are used in a wide range of industrial applications:
Their versatility makes them a valuable heating solution across multiple manufacturing sectors.
When selecting cartridge heaters for die heating, businesses should look for the following features:
These features help maximize efficiency while reducing maintenance requirements and downtime.
Investing in quality cartridge heaters offers several advantages:
Consistent heating ensures better dimensional accuracy and reduced defects.
Efficient heat transfer minimizes energy wastage and lowers operating costs.
Durable construction and long service life reduce replacement frequency.
Rapid heat-up times and stable temperatures help improve throughput and productivity.
Cartridge heaters are designed to withstand demanding industrial environments and continuous operation.
As a cartridge heater manufacturer, Heat Source offers customized cartridge heaters according to the heating requirements of different dies and industrial applications. Factors such as diameter, length, wattage, voltage, sheath material, terminal configuration, and operating temperature can be considered when selecting or manufacturing a cartridge heater.
Customization helps ensure proper fitment within the drilled hole and supports efficient heat transfer and temperature control.
Selecting the right cartridge heater depends on several factors, including:
Working with an experienced industrial heater manufacturer can help ensure the correct heater configuration for optimal performance.
Selection depends on factors such as die dimensions, required temperature, watt density, voltage, installation conditions, and the specific heating application.
Cartridge heaters provide concentrated and controlled heating, making them suitable for dies that require consistent temperatures and efficient heat transfer.
Yes, cartridge heaters can be customized based on requirements such as diameter, length, wattage, voltage, sheath material, terminal configuration, and operating temperature. Customization helps ensure proper fitment and efficient heat transfer for specific applications.
Choosing the right cartridge heater for die heating can help manufacturers achieve consistent temperatures, efficient heat transfer, and reliable production performance. Factors such as heater dimensions, wattage, voltage, operating temperature, and installation conditions should be considered when selecting a cartridge heater for a specific application.
For customized die heating requirements, choosing a cartridge heater manufacturer with experience in application-specific heating solutions can help ensure the heater is designed to suit the required dimensions, wattage, voltage, and operating conditions.
Looking for a cartridge heater for your die heating application? Contact Heat Source to discuss your heating requirements and customization options.
